Linear encoder (magnetic linear scale) systems

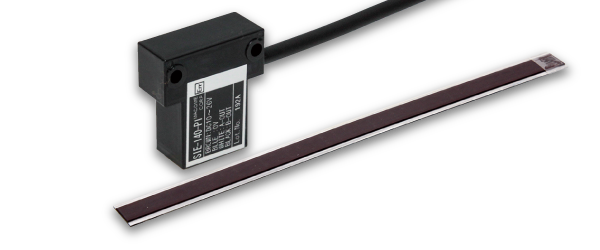

A measuring system consists of a magnetic scale and a reading head,
detecting the amount of linear position change and outputs the measured value.
- □ Magnetic detection ensures that the measurement is unaffected by dust and dirt, making it ideal for harsh environments.
- □ Complete non-contact between the reading head and the magnetic scale ensures long-term stability and frees users from maintenance.
- □ Long distance and fast response.
Key components
Scale counter is included only
with SI-140PAC.
List of linear encoder systems
Absolute linear encoders (exact linear position)
Long distance capable
SA-100 system
High resolution compact type
SA-200 system
Incremental linear encoders (relative position change)
Miniature light weight type
SI-140 series MACOMEasure® system
High resolution
SI-410 system
＊ no some models
Fast response
SI-230 system
＊ no some models
Wider airgap
SI-550 system
All-in-one turnkey system
SI-140PAC
Function and performance comparison between systems
※ Controllers (such as counters or PLCs) must support quadruplication.
